Laser Measuring Diameter Instrument Wide Measuring Range High Accuracy

Product Categories
Weifang Huantaitongshang Import And Export Co., Ltd.
Contact Now

Laser Measuring Diameter Instrument Wide Measuring Range High Accuracy

  • 1
  • 2

Brand Name : HTTS

Model Number : LDM-10,30,60

Place of Origin : CHINA

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, L/C, D/A

Supply Ability : 500 sets per month

Delivery Time : 5 working days

Packaging Details : cartons and pallets

Name : Diameter Tester

Function : Measurement of diameter, length

Color : Silver

Application 1 : Wire and Cable

Application 2 : Metal wire and line

Contact Now

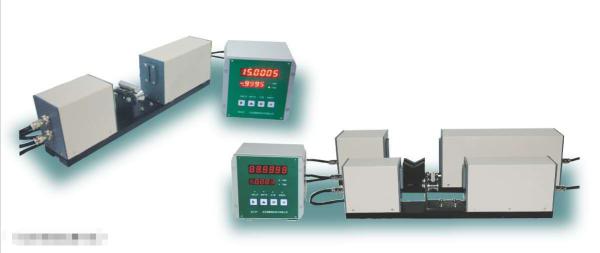

Laser Measuring Diameter Instrument

INTRODUCTION

Laser Measuring Diameter Instrument is a high-tech product of photoelectric integration. Laser scanning is used to achieve high-speed, high-precision, non-contact measurement on circular objects on the production line. Because of non-contact measurement points, there is no interference to the measured object, so it is very suitable for thermal, soft, moving and vibration. The object to be tested.

FEATURES

  • Scanning speed:1800scan/second
  • Data processor and storage: Applying high-performance DSP processor for high-speed and high-precision calculations, and large-capacity FLASH memory for data logging.
  • Communication interface: RS232 and RS485, that can keep online detection by connecting computer or transfer the measurement records to computer.
  • Continuous measurement, data retention, data storage.
  • Continuous measurement can observe the moving object; Data retention let recording easily; And data storage can store data according to the gauge No, line No and time.
  • Parameter setting.User can set the nominal value and tolerance of the measured object; and set the error alarm indication; the gauge No, line No, technical strand and so on.

SPECIFICATION

Type Measuring range Precision Repeatability error Resolution
LDM-10A 0.100~10mm ±1μm ±0.3μm 0. 0001mm
LDM-10B 0.100~10mm ±1μm ±1μm 0. 001mm
LDM-30A 0.100~30mm ±1μm ±0.5μm 0.0001mm
LDM-30B 0.100~30mm ±2μm ±1μm 0.001mm
LDM-60A 0.100~60mm ±2μm ±1μm 0.0001mm
LDM-60B 0.1000~60mm ±3μm ±2μm 0.001mm

OUR COMPANY

As a professional testing equipment company, HTTS mainly focuses on mechanical testing,environmental testing and diameter measuring, and these equipments are widely used in the fields of wire&cable, machining and other related industry. Depending on high accuracy, stable quality and wide detection range, our products are widely used by many wire&cable companies and research&testing institute.
