Portable Laser Diameter Guage For High Precision Diameter Measuring

Brand Name : HTTS

Model Number : LDM-HA

Certification : ISO

Place of Origin : China

MOQ : 1SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10 SETS / WEEK

Delivery Time : 5-8 work days

Packaging Details : export carton packing

Model : LDM-01HA

Measuring range : 0.01000~1mm

Precision : ±0.5μm

Repeatability error : ±0.2μm

Resolution : 0.00001mm

Contact Now

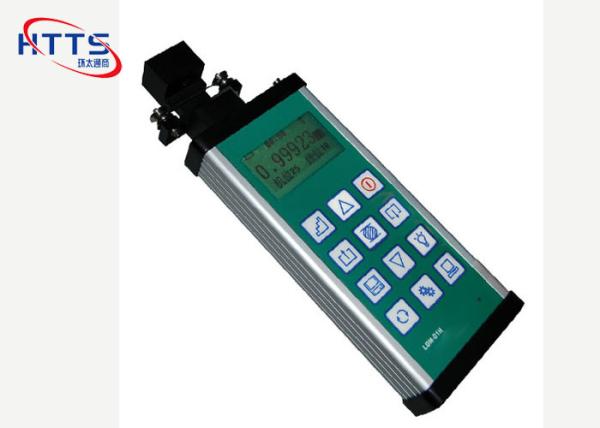

Portable hand-held laser diameter gauge for high precision diameter measuring

INTRODUCTION

Hand-held laser diameter gauge adopts laser scanning method, With advantages of high accuracy and small size, it's portable and can be widely used in the fields of wire & cable, enameled wire, optical fiber...

Both online and offline measuring is available for portable hand-held laser diameter gauge for high precision diameter measuring.

FEATURES

  • Scanning speed:1800scan/second
  • Battery: 2AH lithium battery, that can run more than 8 hours continuously.
  • Date processor and storage: Applying high-performance DSP processor for high-speed and high-precision calculations, and large-capacity flash memory for data logging.
  • Communication interface: RS232 that can transfer the measuring records to computer.
  • Continuous measurement, data retention, data storage: Continuous measurement can observe the moving object; Data retention let recording easily; And data storage can store data according to the gauge No, line No and time.
  • Parameter setting: User can set the nominal value and tolerance of the measured object; and set the error alarm indication; the gauge No, line No, technical strand and so on.
  • Dimension: 80mm × 30mm × 220mm.

SPECIFICATION

Type Measuring range Precision Repeatability error Resolution
LDM-01HA 0.01000~1mm ±0.5μm ±0.2μm 0.00001mm
LDM-02HA 0.01000~2.5mm ±0.5μm ±0.2μm 0.00001mm
