Cheap Laser Diameter Gauge Price For Cable & Wire Diameter Measuring
INTRODUCTION

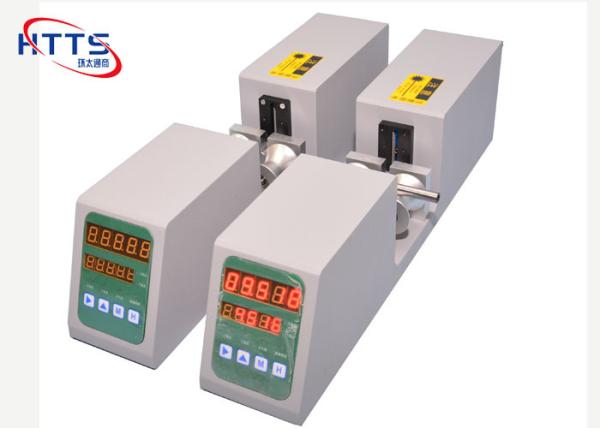

All-in-one laser diameter gauge is specially designed for wire & cable factory. With large measuring range, durable and reliable performance, this online laser scanning gauge is widely used in in the fields of wire & cable, enameled wire, optical fiber, pipe, tube, machining...
Cheap Laser Diameter Gauge Price For Cable & Wire Diameter Measuring
FEATURES
★ Scanning speed:1800scan/second
★ Date processor and storage: Applying high-performance DSP processor for high-speed and high-precision calculations, and large-capacity FLASH memory for data logging.
★ Communication interface: RS232 and RS485, that can keep online detection by connecting computer or transfer the measurement records to computer.
★ Continuous measurement, data retention, data storage
Continuous measurement can observe the moving object; Data retention let recording easily; And data storage can store data according to the gauge No, line No and time.
★ Parameter setting
User can set the nominal value and tolerance of the measured object; and set the error alarm indication; the gauge No, line No, technical strand and so on.
★ Cheap Laser Diameter Gauge Price For Cable & Wire Diameter Measuring
SPECIFICATION
| Type | Measuring range | Precision | Repeatability error | Resolution |
| LDM-30I | 0.10~30mm | ±2μm | ±1μm | 0.001 mm |
| LDM-50I | 0.10~50mm | ±3μm | ±1μm | 0.001 mm |
| LDM-100I | 0.30~100mm | ±8μm | ±3μm | 0.001 mm |
COMPANY INFORMATION
★ We are professional factory of measuring equipment, and our products have a high market occupancy in domestic market.
★ Competitive price - As a profesional and experianced manufacturer, we know the market very well.
★ Good quality - Our products have been largely used in different fields in China, and own a good reputation.
★ Professional service - We will offer specific guidance for you and your market.
