Dual Access Two Axes Laser Diameter Measuring Gauge For Cable And Wire In Production

Name: Dual Access Two Axes Laser Diameter Measuring Gauge For Cable And Wire In Production
Brand: HTTS
Price: 1 USD

Dual Access Two Axes Laser Diameter Measuring Gauge For Cable And Wire In Production Manufactures

Brand Name : HTTS

Model Number : LDM-10BXY

Certification : ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Credit card

Supply Ability : 20 sets / week

Delivery Time : 5-8 work days

Packaging Details : export carton packing

Model : LDM-10BXY

Measuring range : 0.1000~10mm

Precision : ±1μm

Resolution : 0. 001mm

Application : Pipe diameter production testing

Color : Sliver

Warranty : 12 Months

Contact Now

Dual Access Two Axes Laser Diameter Measuring Gauge For Cable And Wire In Production

INTRODUCTION

Laser two-dimensional scanning: Two bunches of lasers to do outer diameter measurement of non-contact ,non-damage from the different angle, it can effectively eliminate error caused by work vibration

FEATURES

Scanning speed:1800scan/second
Communication interface: RS232 and RS485, that can keep online detection by connecting computer or transfer the measurement records to computer.
Parameter setting: User can set the nominal value and tolerance of the measured object; and set the error alarm indication; the gauge No, line No, technical strand and so on.
Online laser diameter gauging instrument for measuring wire & cable diameter at two axis

SPECIFICATION

Type	Measuring range	Precision	Repeatability error	Resolution
LDM-10BXY	0. 1000~10mm	±1μm	±1μm	0.001mm

MORE DETIALS

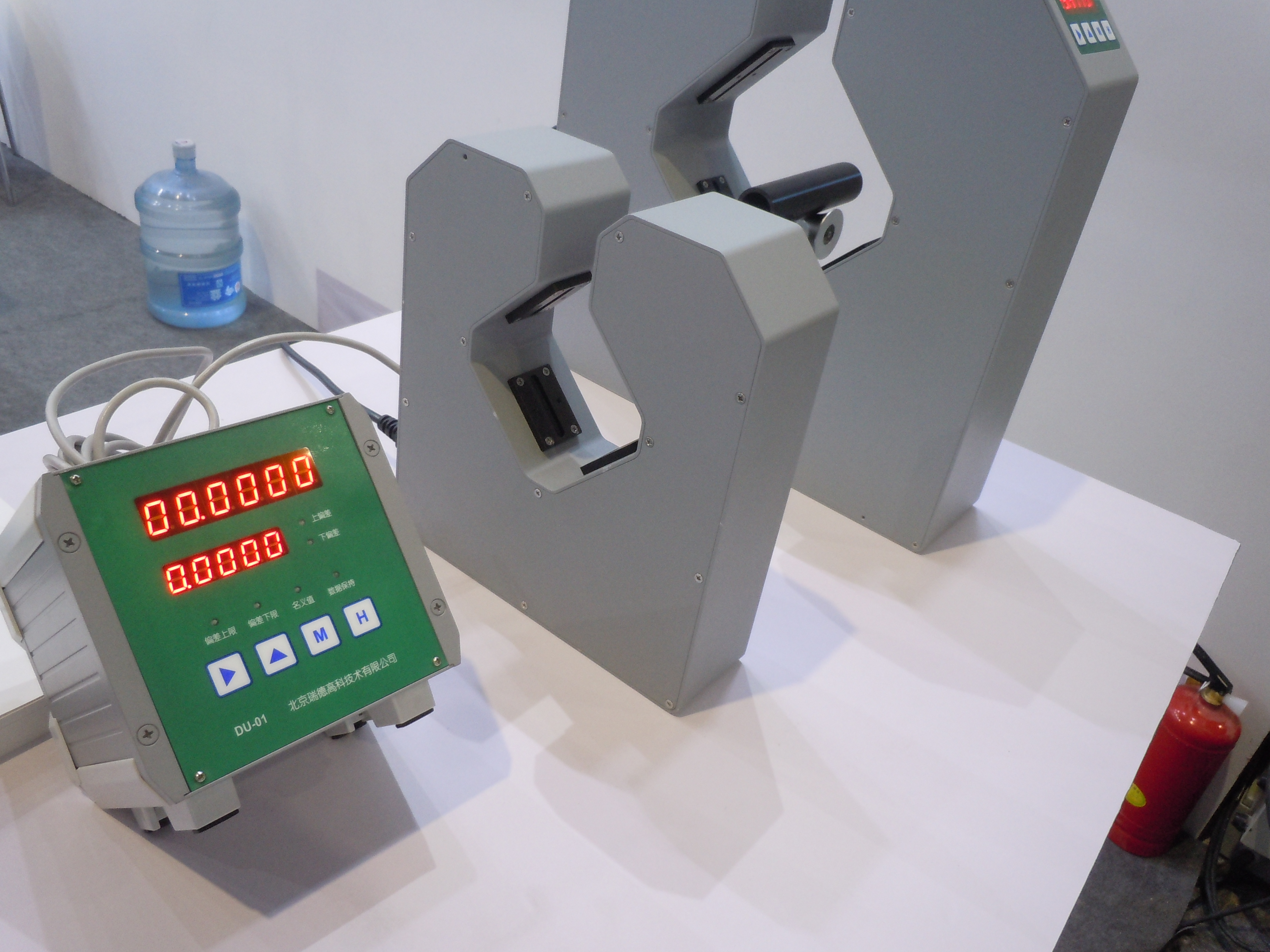

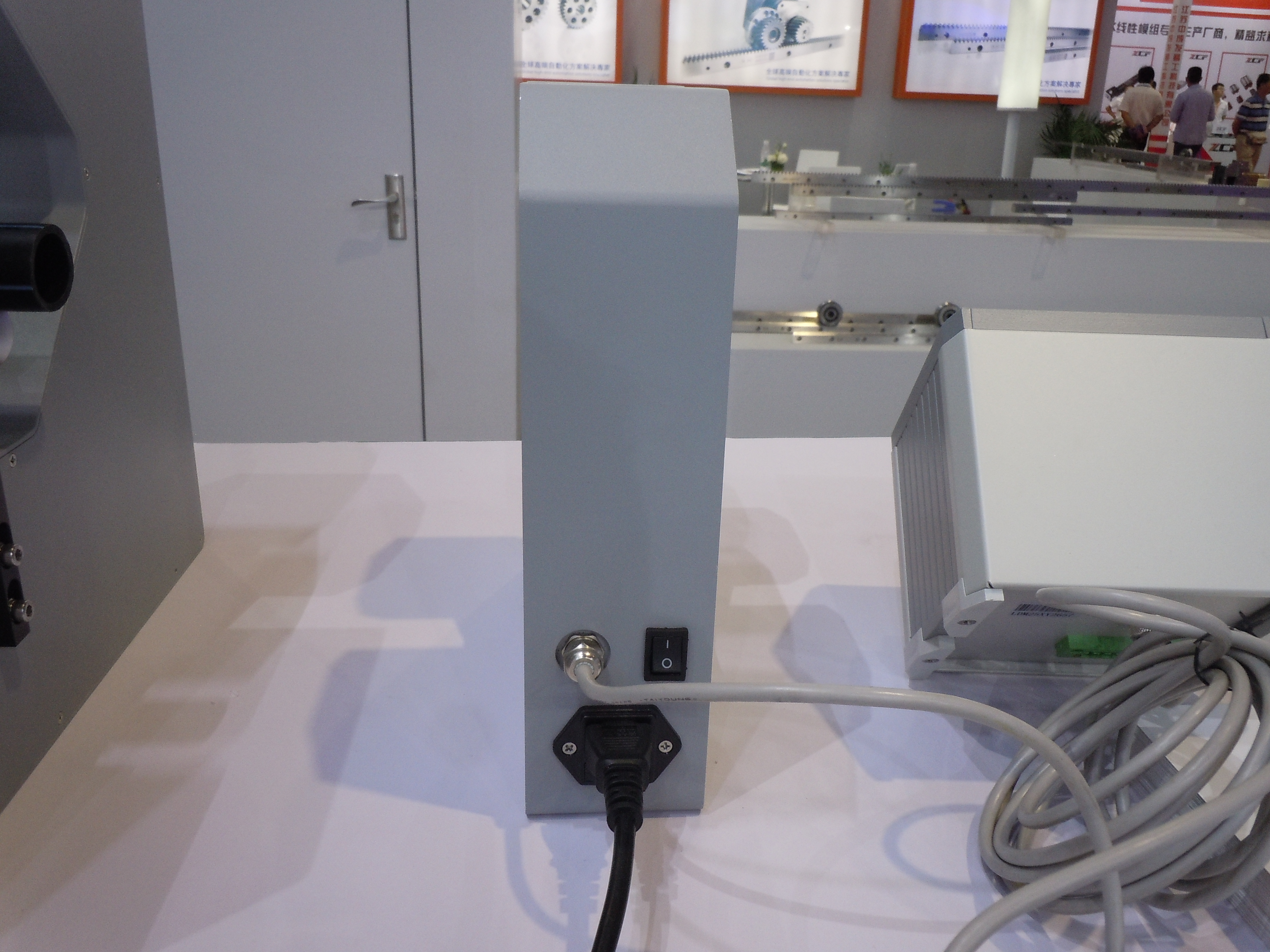

Dual Access Two Axes Laser Diameter Measuring Gauge For Cable And Wire In Production Images
